2027 Big Tex 35SV-12 - 8315

2027 Big Tex 35SV-12

35SV

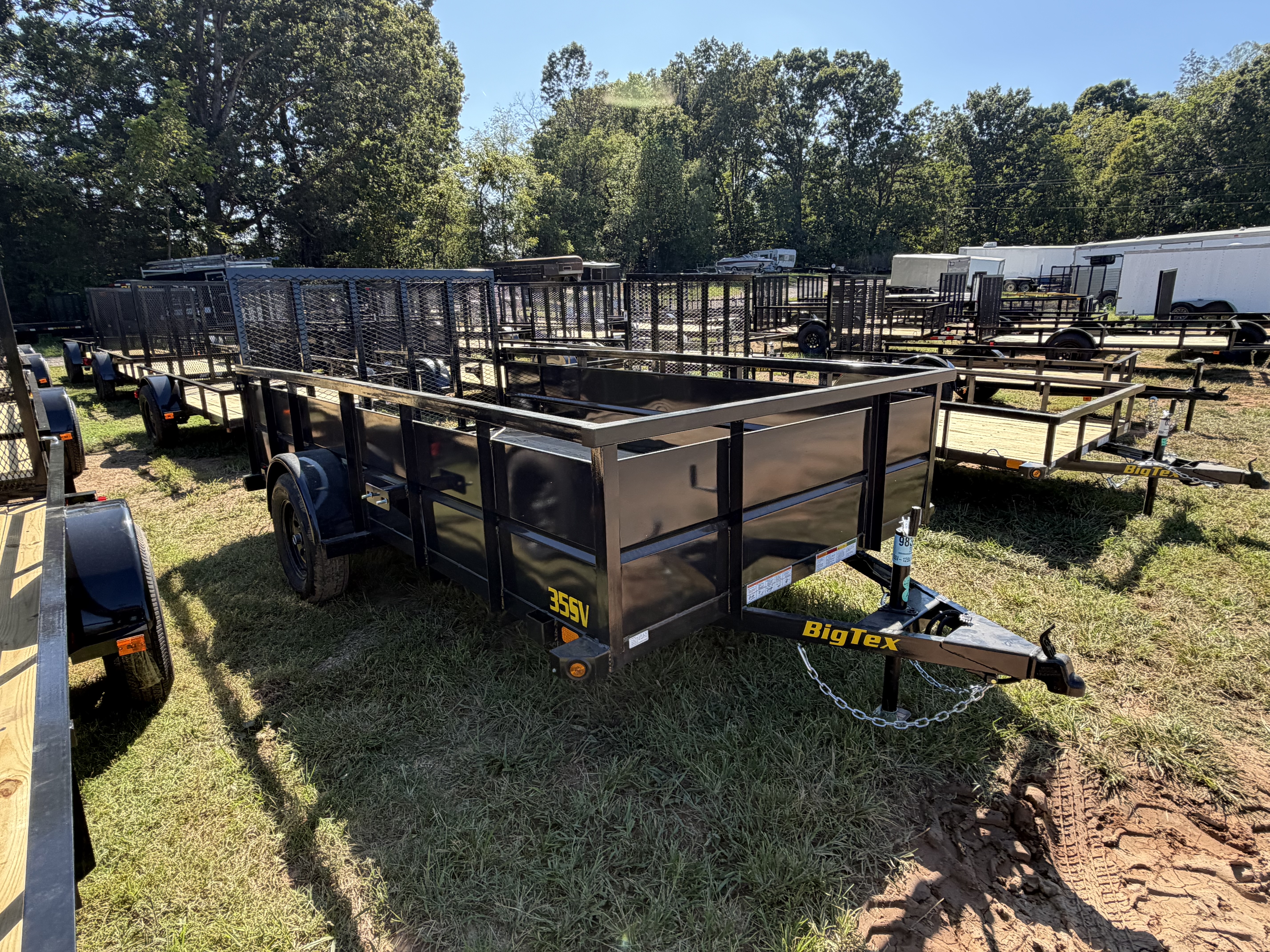

Single Axle Vanguard Trailer

On the job and need a trailer with a bit more space to haul landscaping equipment and tools? Then it’s time to get to work with the 35SV Single Axle Vanguard Trailer. Designed to haul without hassle from job to job, the 35SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

2,000 lbs Set Back Jack

Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.

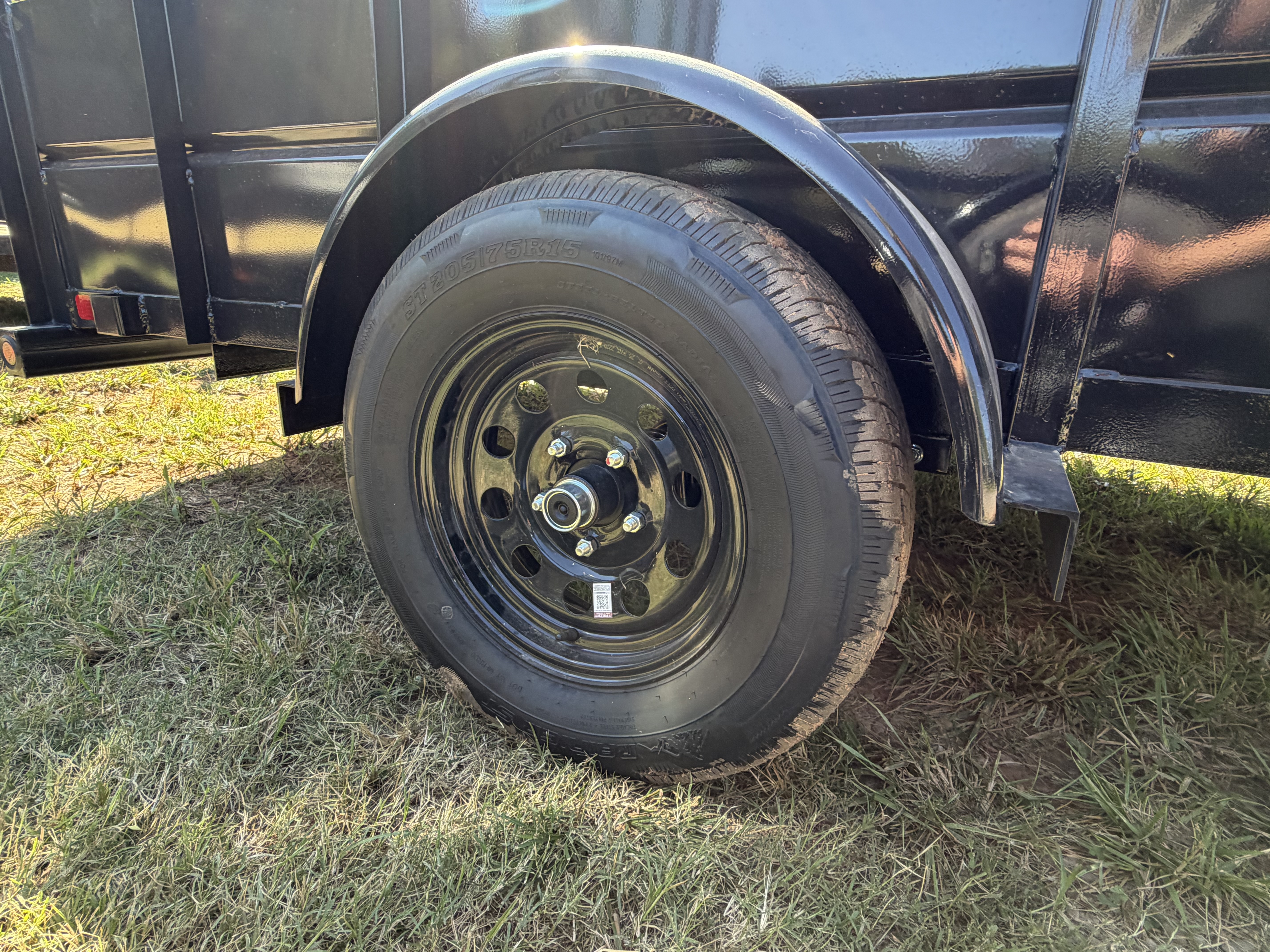

Radial Tires

Long lasting tires deliver a smooth ride while also offering superior fuel economy.

Vanguard Sides

Comes standard equipped with 29-3/8” tall sides and 24” V-crimped steel panels for maximum strength and durability to protect and contain cargo.

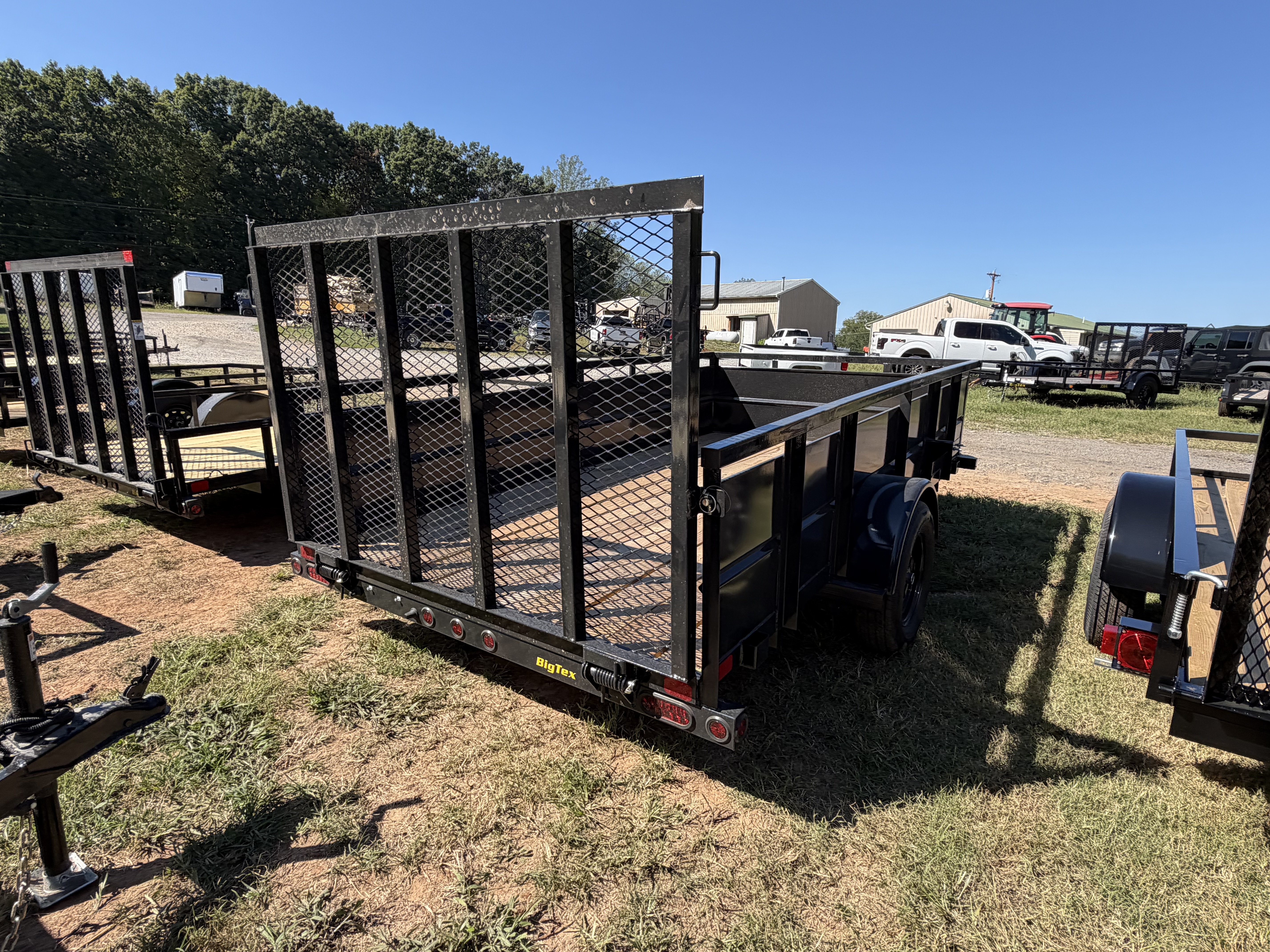

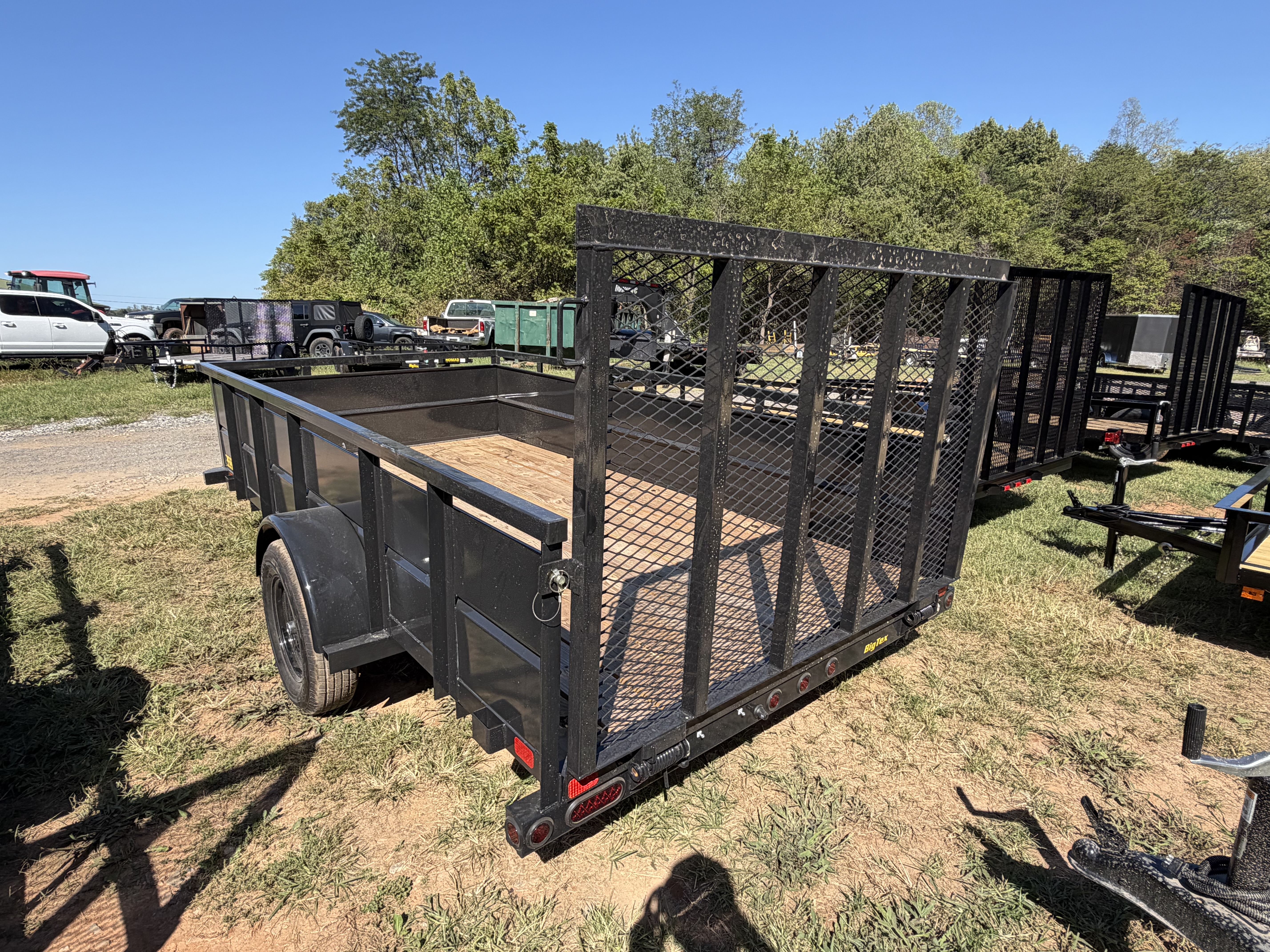

Versatile 4' Rear Rampgate (Optional)

Expand your hauling capabilities with the optional rear ramp gate, ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

Features May Include:

Axles

• 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs

Brakes

• Brake Flanges for Easy Brake Addition

Suspension

• Multi-Leaf Slipper Spring

Coupler

• Demco EZ Latch

Safety Chains

• 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)

Jack

• 2,000# Top Wind, Set-Back Jack

Frame

• 3" x 2" x 3/16" Angle

Cross-Members

• 3” x 2” x 3/16” Angle

Floor

• Treated Pine Floor

Fenders

• 9" x 32" Rolled Formed w/ Back

Trailer Plug

• 4-Way Flat w/ Loom

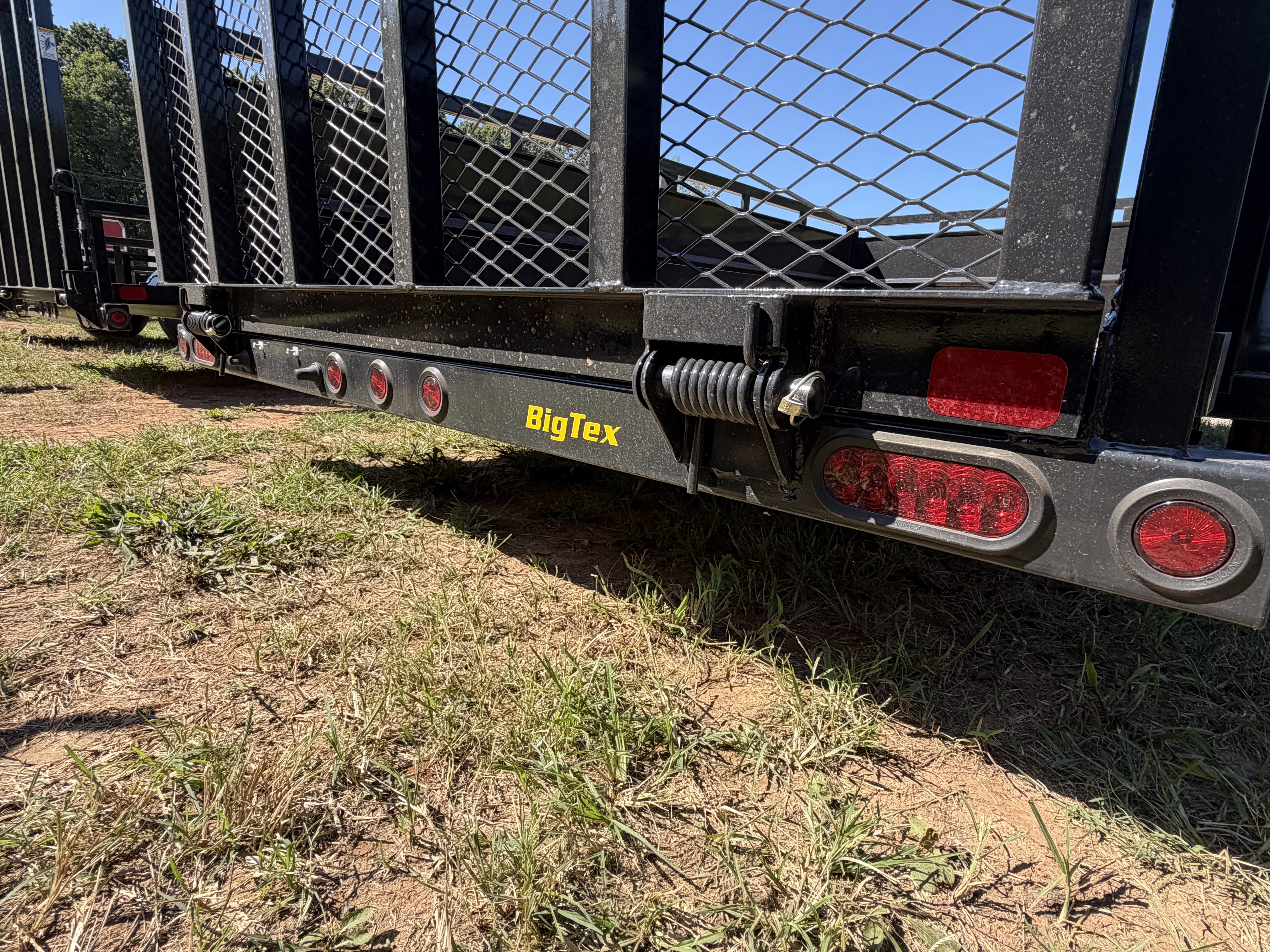

Lights

• L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

• Grommet-Mounted Lifetime L.E.D. Lighting

Tires

• ST205/75 R-15 Load Range C

Bolt Pattern

• 5 Bolt

Spare Mount

• Side Spare Tire Mount

Paint Type

• Professional Finish w/ Primer Standard

Paint Color

• Black

Tie-Downs

• (4) Tie Down Loops Inside Bed

Sides

• 28-1/2" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.)

Top Rail

• 2" x 2" Square Tubing

Options:

• Electric Brakes w/ Complete Break-Away Kit
• 2" Forged Coupler
• 2,000# Fold-Up Jack
• Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
• 4' Tall Rear Ramp Gate w/ Coil Spring Assist, 5' Tall Rear Ramp Gate w/ Coil Spring Assist
• Additional Stake Pockets (Each)
• Spare Tire (ST205/75R-15 LR-C)
• Red,Grey,White,Desert Tan,Jet Blue,Slime Green,Implement Green,Equipment Orange,Medium Yellow
• Additional Tie Loops
• Bolt-On Landscape Box for (24" x 24" x 81-1/2")
