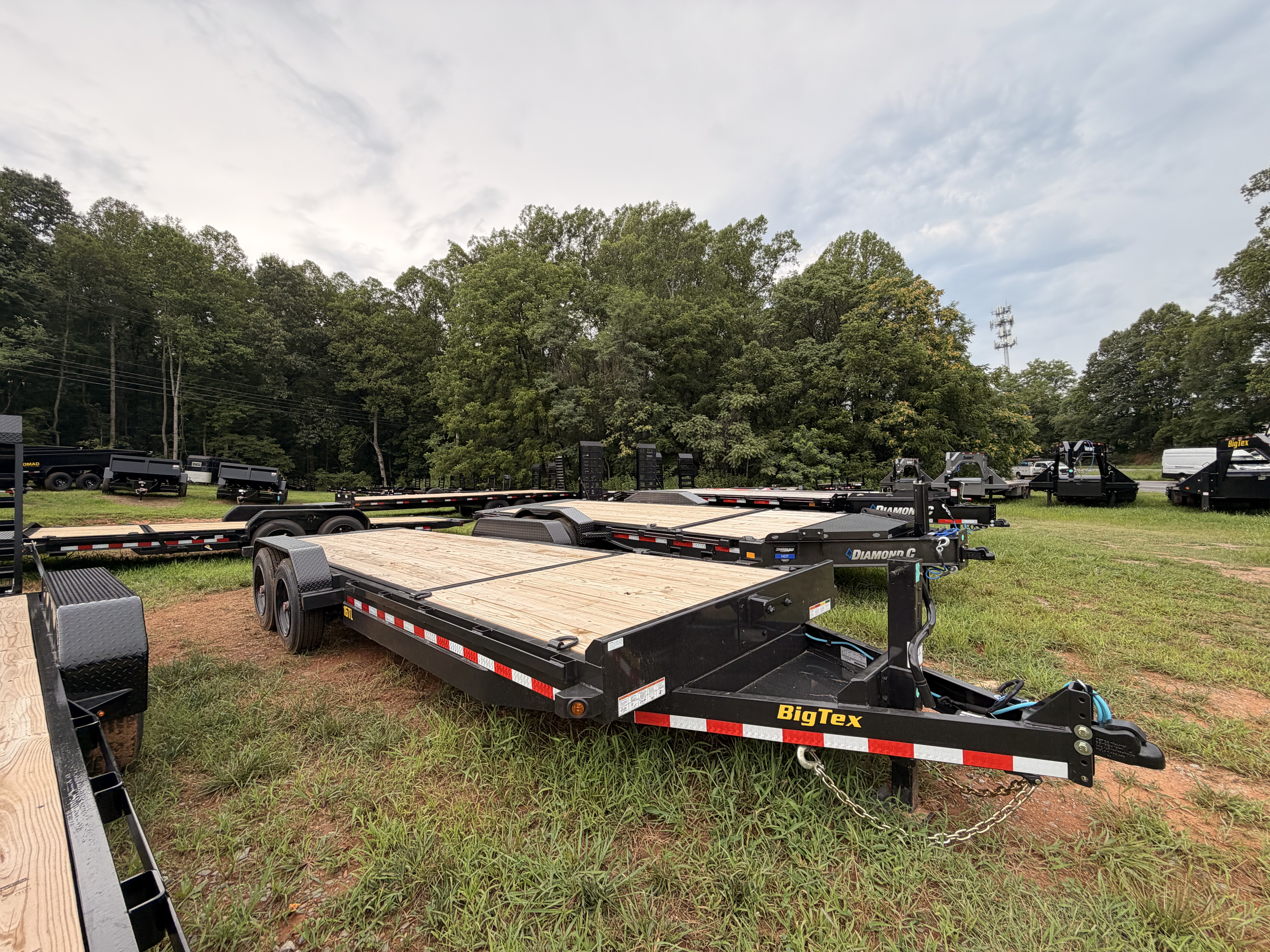

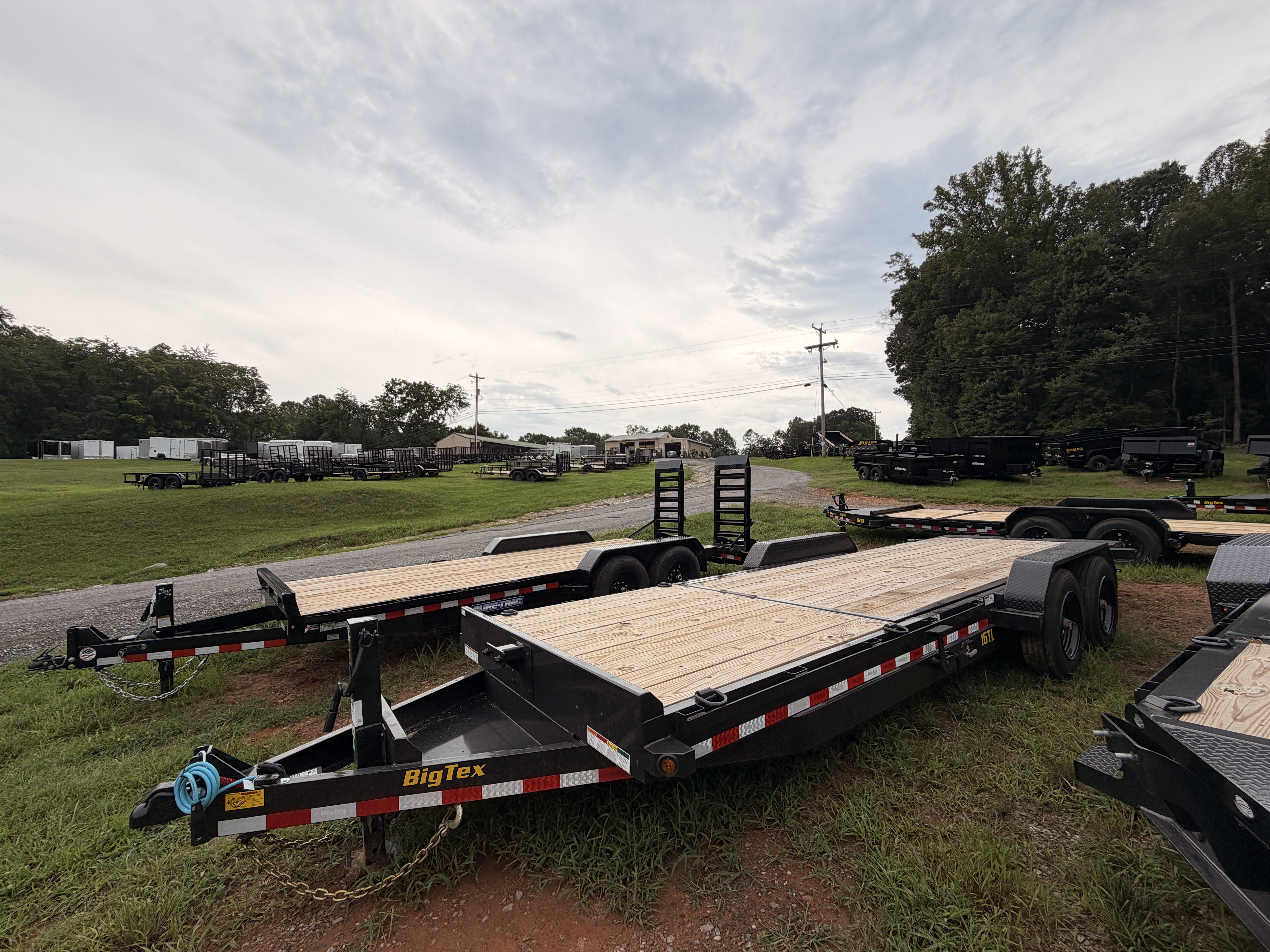

2027 Big Tex 16TL-22 - 3562

2027 Big Tex 16TL-22

16TL

Super Duty Tilt Bed Equipment Trailer

Upgrade your productivity and versatility with the 16TL Super Duty Tilt Bed Equipment Trailer. Coming in multiple models—from 20-feet to 22-feet—this trailer features a stationary front deck and a rear tilt deck, giving you all kinds of options for loading all your low-profile equipment. And with a 12-degree tilt angle and a diamond plate knife edge, loading is a cinch. With sturdy construction and multiple ways to secure your cargo, this thing will haul for the long haul.

Valve Control on Hydraulic Cylinder

A hydraulic dampening system with valve control can lock the cylinder to make loading smooth and easy while ensuring your cargo is secured for the long haul.

Rear Knife Edge

Tow a wide variety of equipment and small vehicles with the versatile 1/4" diamond plate rear knife edge.

Stationary Front Deck

This trailer brings the best of both worlds, with a stationary front deck for added stability and versatility.

Heavy Duty Diamond Plate Steel Fenders

Built to stand up to whatever punishment is thrown at it, these fenders keep your trailer protected and are also removable to allow for easy replacement if damaged.

Features May Include:

Axles

• 2 - 8,000# Premium, with Oil Bath and Valcrum Caps

Brakes

• Forward Self-Adjusting Electric Brakes on Both Axles

Suspension

• Torsión Axles

Coupler

• Adjustable 2-5/16” Demco EZ Latch

Safety Chains

• 3/8" Grade 70 w/ Safety Latch Hook (2 ea)

Jack

• 12,000# Drop-Leg Jack (Side Wind)

Frame

• 8" Channel

Cross-Members

• 3" Channel on 16" Centers

Front Stop Rail

• 3/16" Fabricated Front Stop Rail

Floor

• Treated Pine Floor

Fenders

• 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)

Stake Pockets

• Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

• 7-Way RV

Lights

• Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

• Sealed, Modular Cold-Weather Wiring Harness

Tires

• ST215/75 R-17.5 Load Range H Radial Tires

Bolt Pattern

• 8-Bolt

Spare Mount

• Front Spare Tire Mount

Paint Type

• Professional Finish w/ Primer Standard

Paint Color

• Black

Tilt Deck Dimensions

• 75" Wide (83" Between Fenders) with 1/4" Diamond plate Knife Edge

Tilt Deck Operation

• Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism

Stationary Deck Area

• 4' x 83" (20' Models)

Rubrail

• Rub Rail Along Both Sides

Tie-Downs

• (6) 5/8" D-Rings

Break-Away Kit

• Complete Breakaway System w/ Zip™ Breakaway Cable and Charger

Tilt Deck Angle

• 14°

Options:

• Adjustable Pintle in Channel in Lieu of Coupler
• Blackwood Pro- Outer Deck Only (X Length of Trailer),Blackwood Pro Rubber Infused Lumber Floor (per linear foot),1/8” Diamond Plate Steel Floor (Per Square Foot)
• Spare Tire & Wheel (ST215/75 R-17.5 LR-H)
• Red,Grey,White,Desert Tan,Jet Blue,Slime Green,Implement Green,Equipment Orange,Medium Yellow
• Extra 5/8" D-Rings, Recessed D-Ring in Floor (Steel Floor Only)
