FEATURED 2027 Big Tex 14LX-14 - 1513

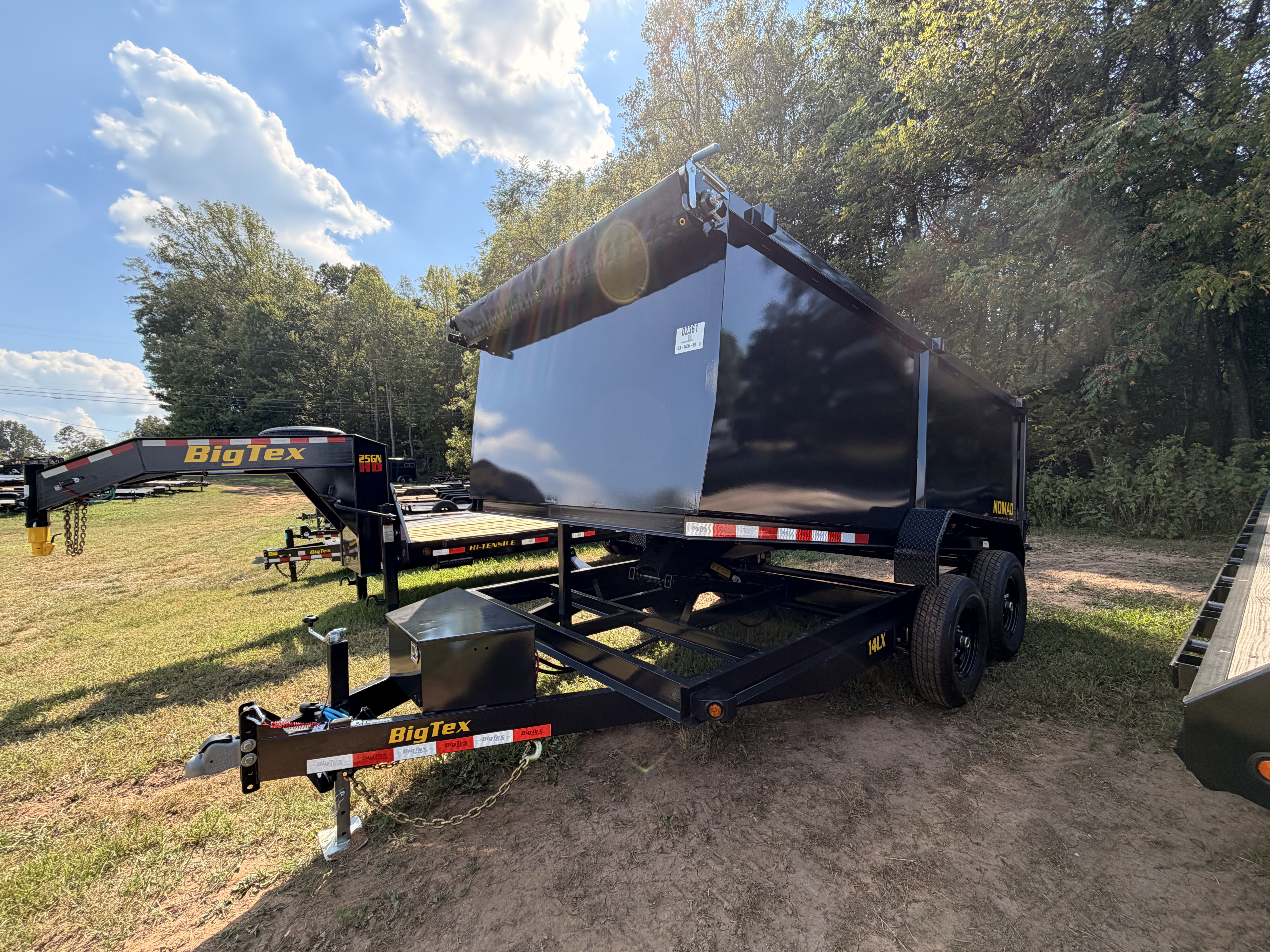

2027 Big Tex 14LX-14

14LX

Channel Tandem Axle Dump Trailer

Tested Big Tex Tough. Value Guaranteed. The 14LX gives you unbeatable value without cutting corners on quality. Built with a tough 6–inch channel frame and tongue, it delivers the strength and durability you need. At an affordable price, with key features like a hydraulic scissor lift system with power up, power down, and gravity down, forward self–adjusting brakes, and a heavy–duty adjustable coupler. Whether you're hauling equipment or loose materials, the 14LX is ready for your toughest jobs. Choose the 14LX and enjoy premium performance at a price that works for you.

Power Up/Power Down & Gravity Down

Equipped with a Hydraulic Scissor Lift System featuring power up/power down and gravity down capabilities, this trailer achieves over 20% more cycles compared to traditional power up/power down systems.

Equipment Ready-Design

This model is standard equipped with slide in ramps, rear stabilizers and D-rings for loading and hauling your equipment.

Feature Packed

These models come standard with all the essentials, including a 7K Jack, Rear Stabilizer Jacks, Tarp Kit, Onboard Battery Charger, and Rear Combo Gates.

Also Available With 4' Sides

Do you need a higher-capacity dump box for those big jobs? The 14LX is also available with 4-foot-high sides. Contact your local Big Tex Trailers dealer today for more details!

Features May Include:

Axles

• 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

• Forward Self-Adjusting Electric Brakes on All Hubs

Suspension

• Multi-Leaf Spring w/ Equalizer

Tongue

• 6" Channel

Coupler

• Adjustable 2-5/16" Coupler

Safety Chains

• 3/8" Grade 70 w/ Safety Latch Hook (2 ea)

Jack

• 7,000# Top Wind Drop Leg Jack

Frame

• 6" Channel

Cross-Members

• 3" Channel on 16" Centers

Floor

• 10 Gauge Smooth Steel

Fenders

• 9” x 72” 14 Ga. Diamond Plate Double Square Broke

Ramps

• 6.5' Slide in Ramps with Integrated Ramp Door

Stake Pockets

• Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

• 7-Way RV

Lights

• Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

• Sealed, Modular Cold-Weather Wiring Harness

Tires

• ST235/80 R-16 Load Range-E 10 Ply Radial Tires

Bolt Pattern

• 6 Bolt

Wheels

• Black Mod Steel

Spare Mount

• Side Spare Tire Mount

Paint Type

• Professional Finish w/ Primer Standard

Paint Color

• Black

Tie-Downs

• (4) 1/2" D-Rings Inside Bed to Secure Equipment

Break-Away Kit

• Complete System with Breakaway Cable

Battery

• 12V Deep Cycle

Charger

• 5A 110V on Board Battery Charger

Gate

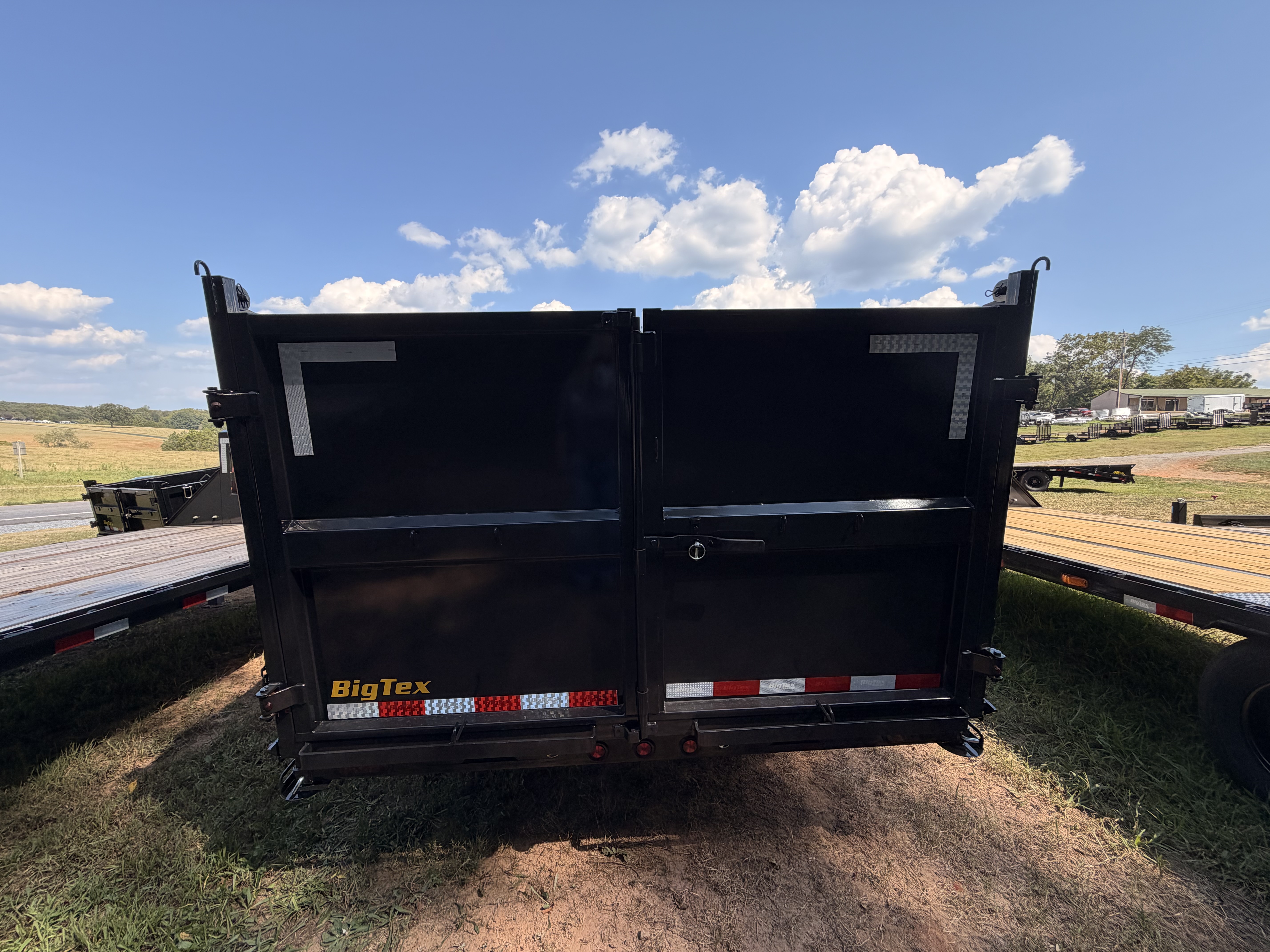

• Rear Combo Gate (Barn Doors & Spreader Gate)

J-Hooks

• Along Rear for Cargo Control

Power

• Power Up/Power Down & Gravity Down Hydraulic Pump

Ram

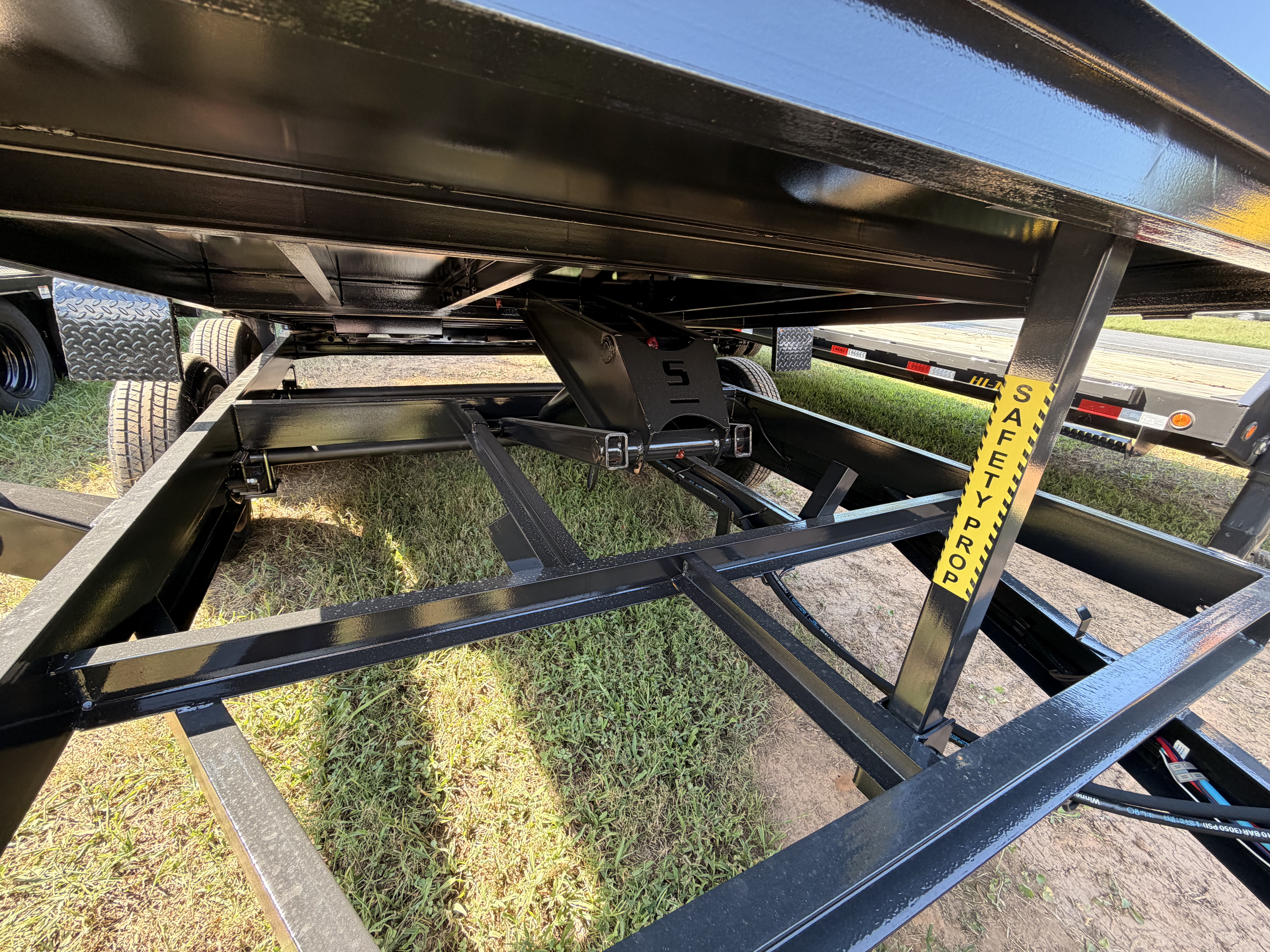

• Self-Contained Scissor

Sides

• 24" Tall (10 Ga) with formed Channel Supports

Stabilizers

• Rear Stabilizer Stands

Storage

• Lockable Pump and Battery Box mounted in Front of Bed

Tarp

• Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders

Top Rail

• 3"x 2" Rectangular Tubing

Options:

• Adjustable Pintle in Channel in Lieu of Coupler
• Spare Tire & Wheel (ST235/80 R-16 LR-E 10 Ply)
• 5 Watt Solar Charger, Wireless Remote
• 4' Solid Sheet Metal Sides, Board Bracket Kit (6)
