2026 Diamond C MDT 12' x 77"- 2886
Get in Touch
Description

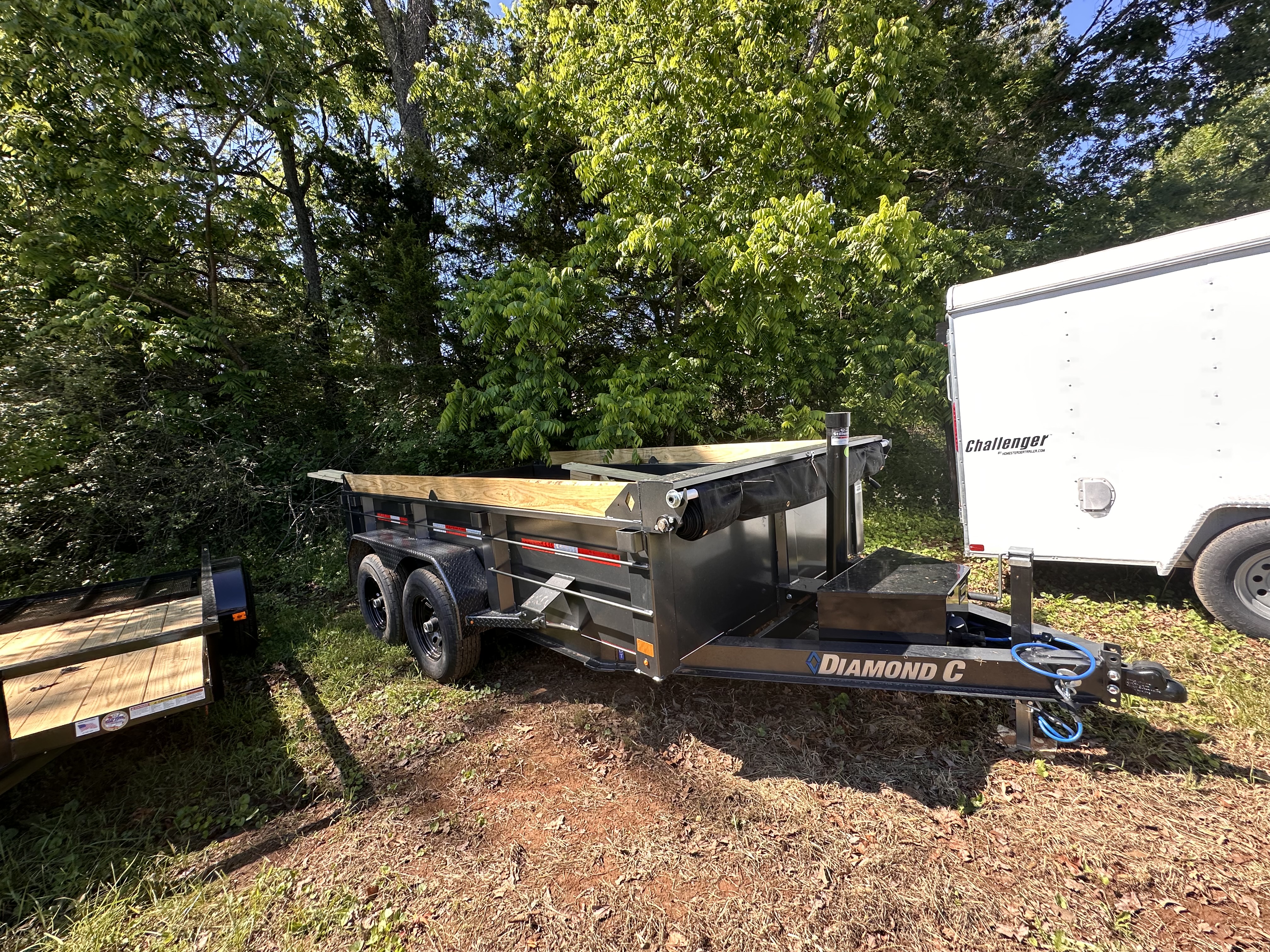

2026 Diamond C MDT 12' x 77"
Medium Duty Telescopic Dump Trailer
Meet our newly designed medium duty dump trailer model MDT: designed to perfectly compliment most late model half-ton and three-quarter ton pickup trucks on the market. This pairing produces a great power-to-weight ratio for home owner and light commercial use.
Medium Duty Dump with a Big Attitude
Built on a solid low profile 6″ I-Beam frame and riding on dual 6K drop axles, this telescopic dump packs a punch. Includes many features usually reserved for the heavier duty class, including 10 ga body upgrades, 12K jack options, and heavy duty fenders.
High-Flow KTI Pump
Experience a 25% faster up and down dump cycle time with the new High-Flow KTI Pump.
Dealer Notes
Dump MDT206L 12X77 10K, 2-6,000lb. Drop Brake Axles, Floor 10Ga. Integral w/24" Sides, 3-Way Tail Gate, 14 Ga. Diamond Plate Fenders, 7K Drop Leg Jack, Spare Mount, 3 Stage Telescopic Cylinder, 2-5/16" Coupler, Board Bracket w/Boards ST225/75R15 10-Ply Tires, 4-D-Rings, 60" Slide-In Ramps, LED Lighting, 18' HD Tarp Kit
Info
Industry
Trailer
Make
Diamond C
Model
MDT
Trim
12' x 77"
Year
2026
Price
11400
Stock Number
2886
Category
Dump Trailer
Subcategory
Dump Trailer
Condition
New
Vin
46UDD1224T1312886
Dry Weight
3090 lbs
Color
Metallic Gray
Hitch Type
Bumper Pull
Axles
2
Length
12 ft
Width
6' 4" ft
Height
24" Sides
Suspension
Leaf Spring
Wheels
15"
Tires
ST225/75 R15
Rear Door
3-Way Tailgate
Floor
10 Gauge
Gvwr
9890 lbs
Axle Capacity
6000 lbs (ea)
Payload Capacity
6800 lbs
Slides
60" Slide In Ramps
Load Type
Drop Leg Jack
Specifications
GVWR
9890 lbs
Width
Bed: 77″
Axles
2 - 6,000 lb Super Lube, Electric Brakes, Drop, Spring
Length
12 ft
Frame
Main: 6” I-Beam Dump Body - 3” x 2” Rectangle Tube
Fenders
14 ga Teardrop, Diamond Plate
Tires
ST225/75R15 Radial
Tongue
6” x 8.5 lb I-Beam, with Pump Box
Crossmembers
3” I-Beam on 16” Centers
Dry Weight
3090 lbs
Coupler
2-5/16” 21,000 lb Demco EZ-Latch Adjustable
Battery
Group 27 Series Deep Cycle Battery with 110V 5amp Charger
Notes
3 Stage Telescopic Cylinder *Includes Power Up/Gravity Down Power Unit*
