FEATURED 2026 Diamond C FMAX212 40’ x 102”- 0105

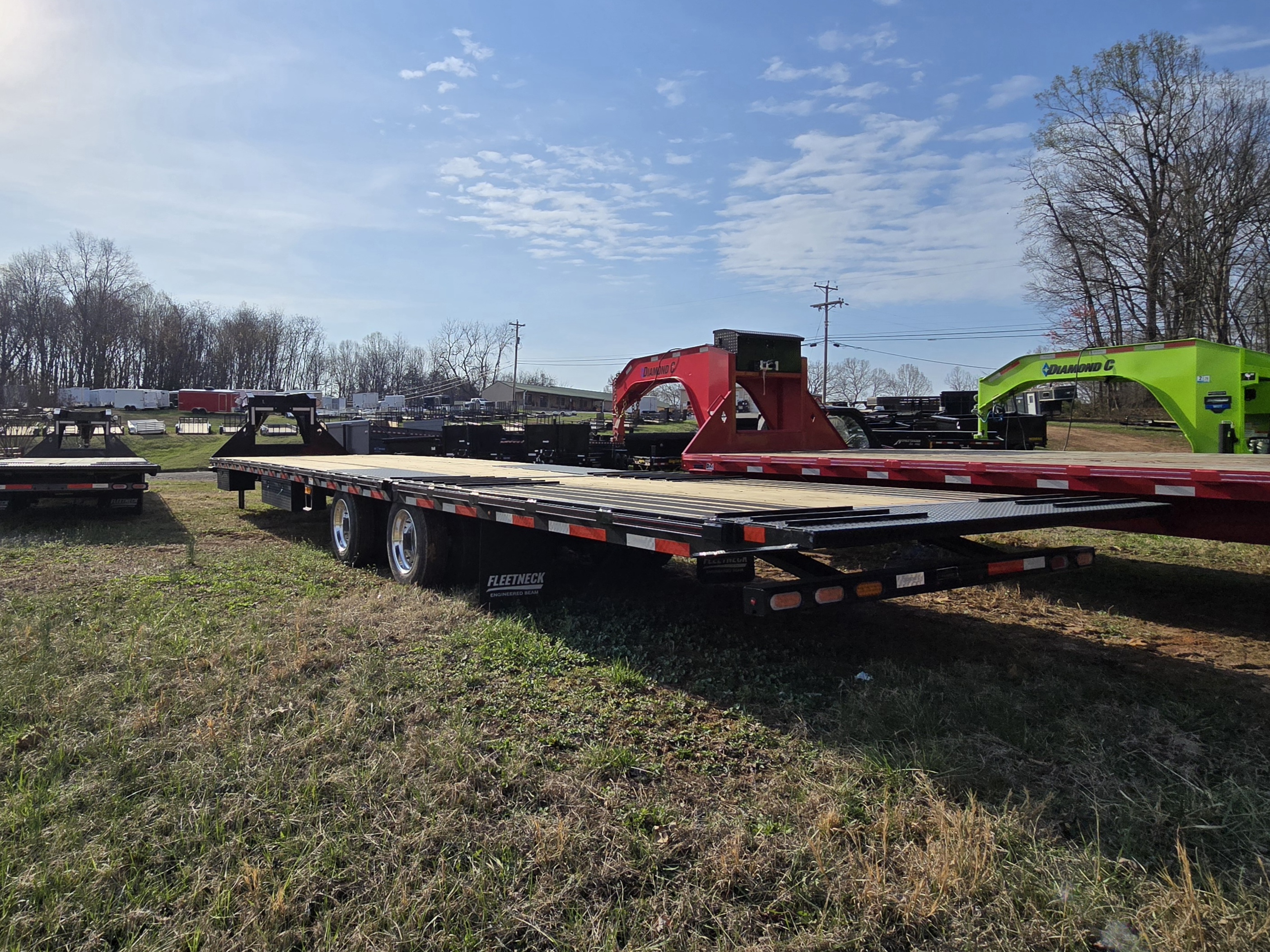

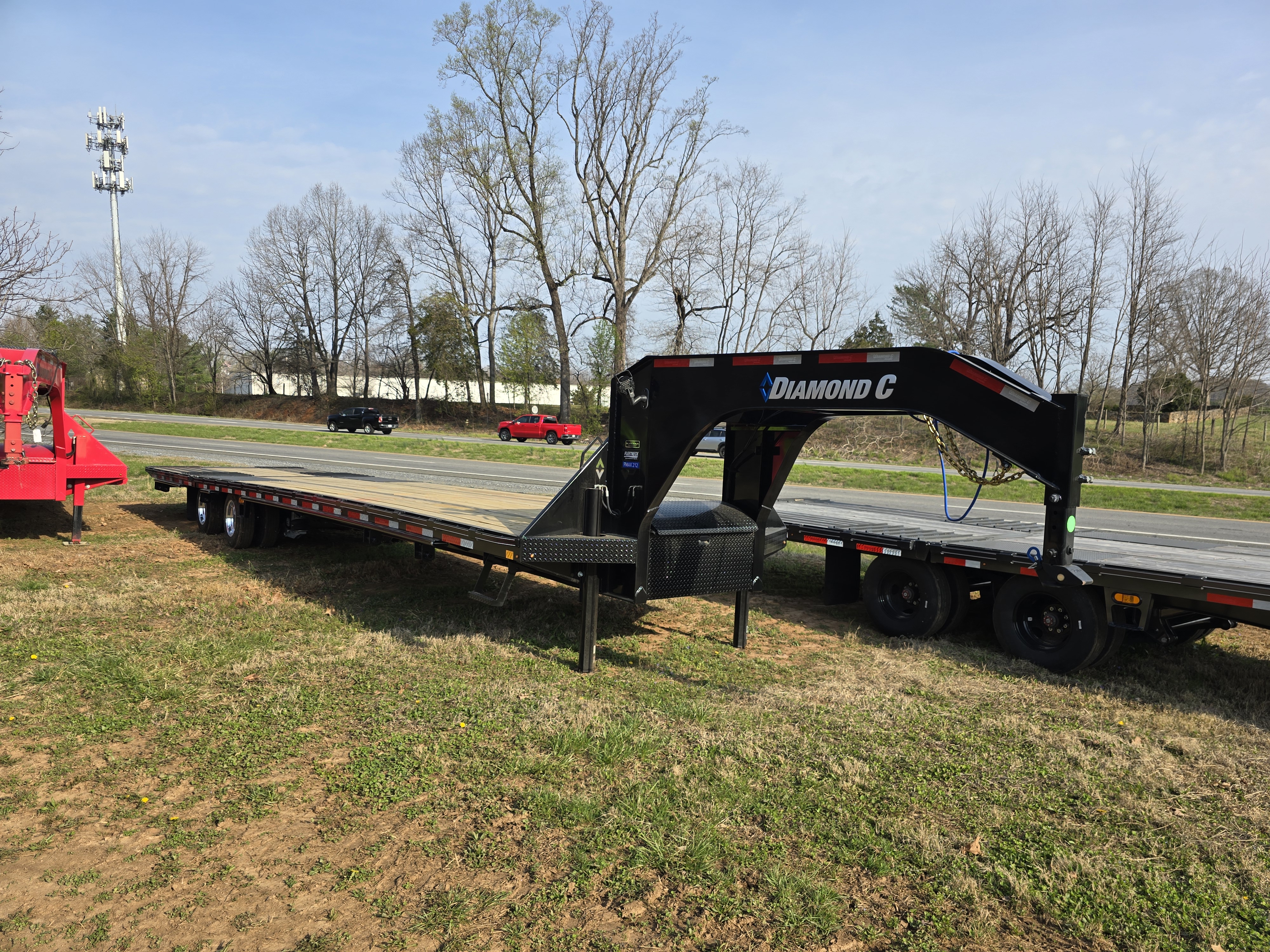

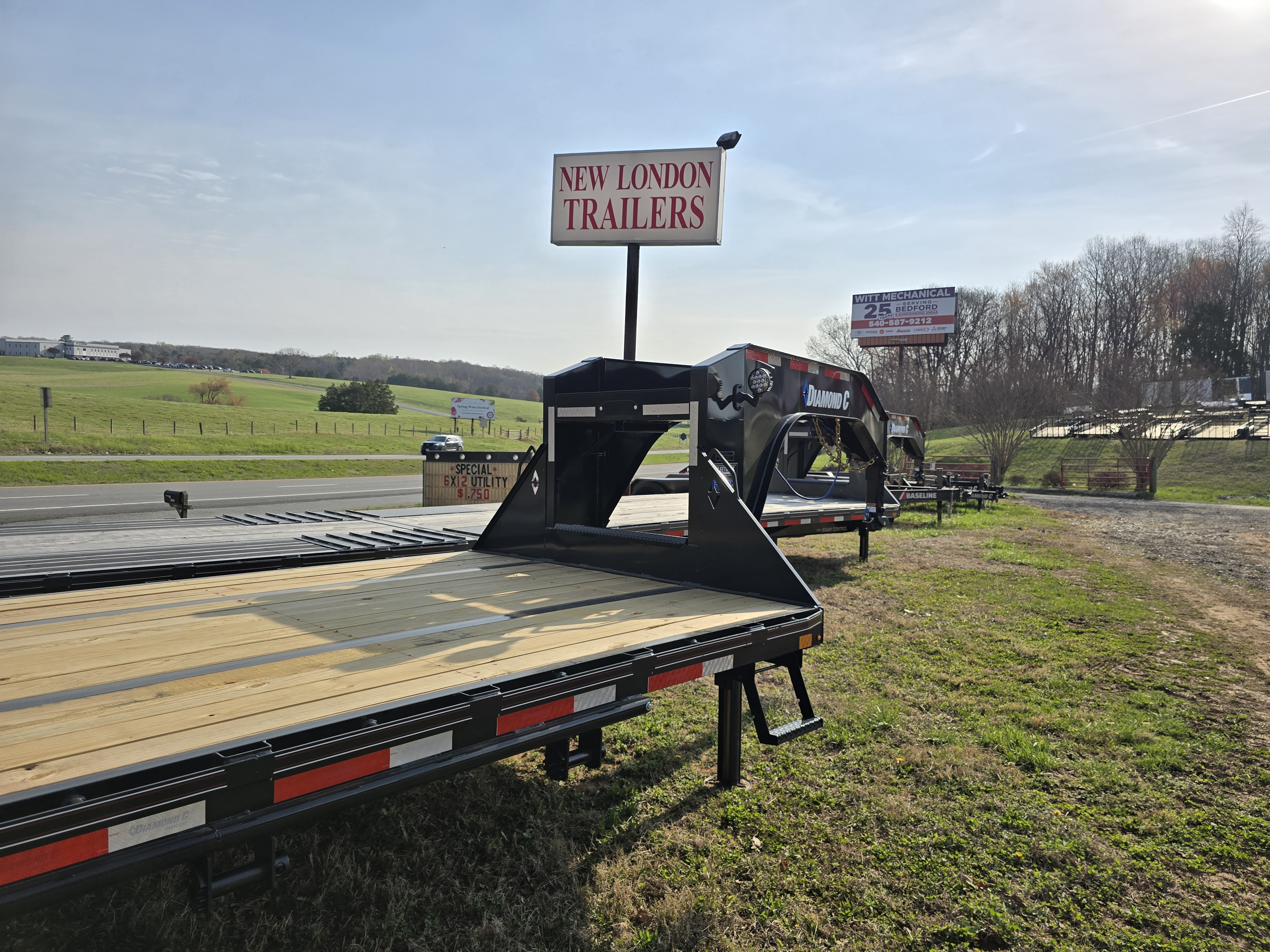

2026 Diamond C FMAX212 40’ x 102”

Tandem - Dual Wheel Gooseneck Trailer

Proven in the field, the FMAX212 tandem dual wheel gooseneck trailer is a powerhouse for any job. Opt for the 40′ model with Air Ride Suspension to create the perfect HOT SHOT trailer. Trusted by professionals, this heavy duty gooseneck trailer is built to own any workload. The FMAX212 is also available in the Pacesetter version, which includes the option for Hydraulic Dovetail and Max Ramps loading, providing additional features and enhancements for those who demand the best in efficiency and convenience.

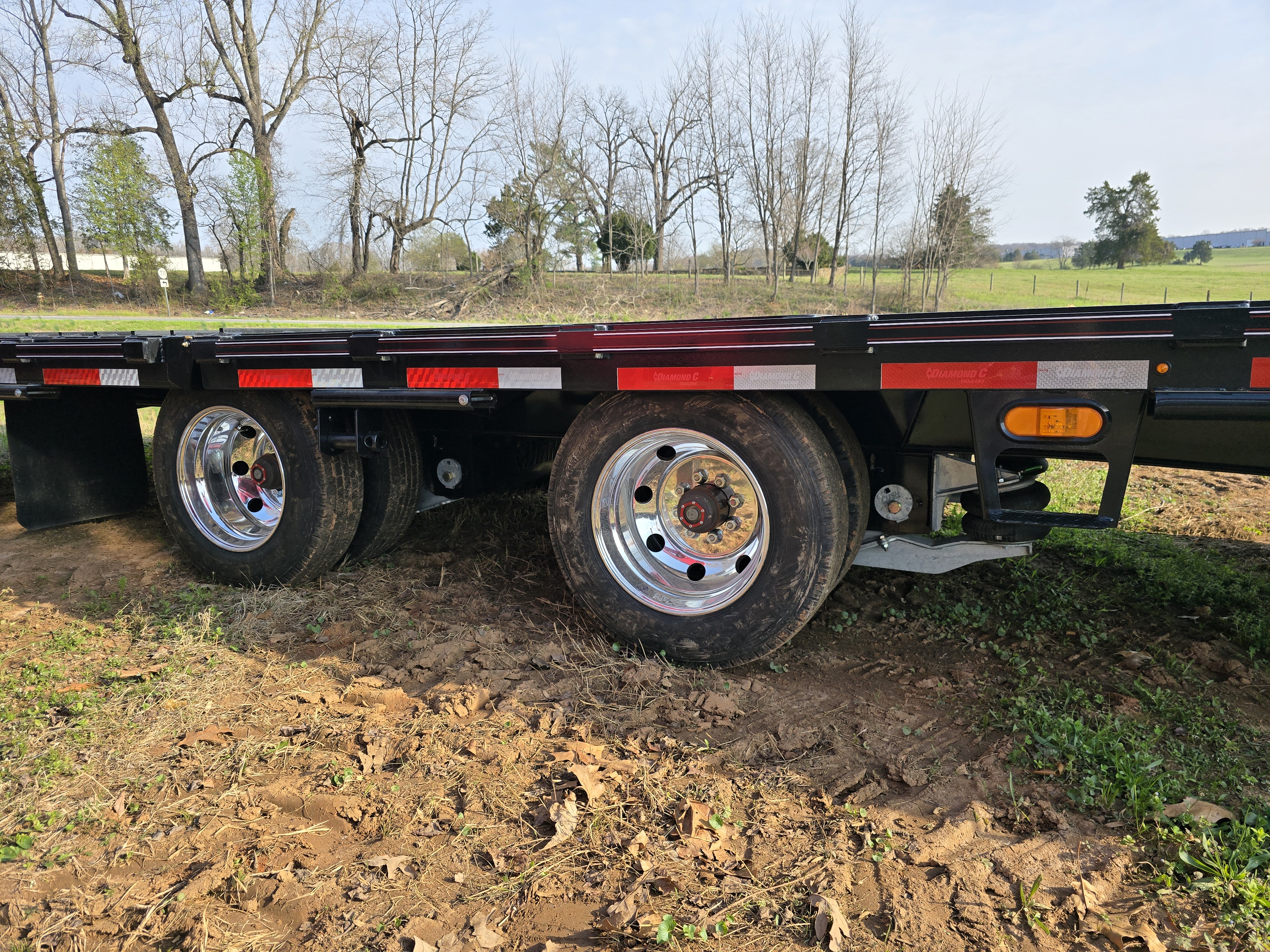

Upgrade to Aluminum Wheels

Weight Reduction: Significantly lighter than steel wheels, which can result in improved fuel efficiency and an easier hauling experience.
Heat Dissipation: Aluminum is a better conductor of heat than steel, allowing for improved heat dissipation. This can help prevent overheating during long trips or heavy loads.
Corrosion Resistance: Aluminum is naturally resistant to corrosion, making it an ideal choice for trailers frequently exposed to moisture and salt, leading to longer-lasting wheels and enhanced durability.

Features May Include:

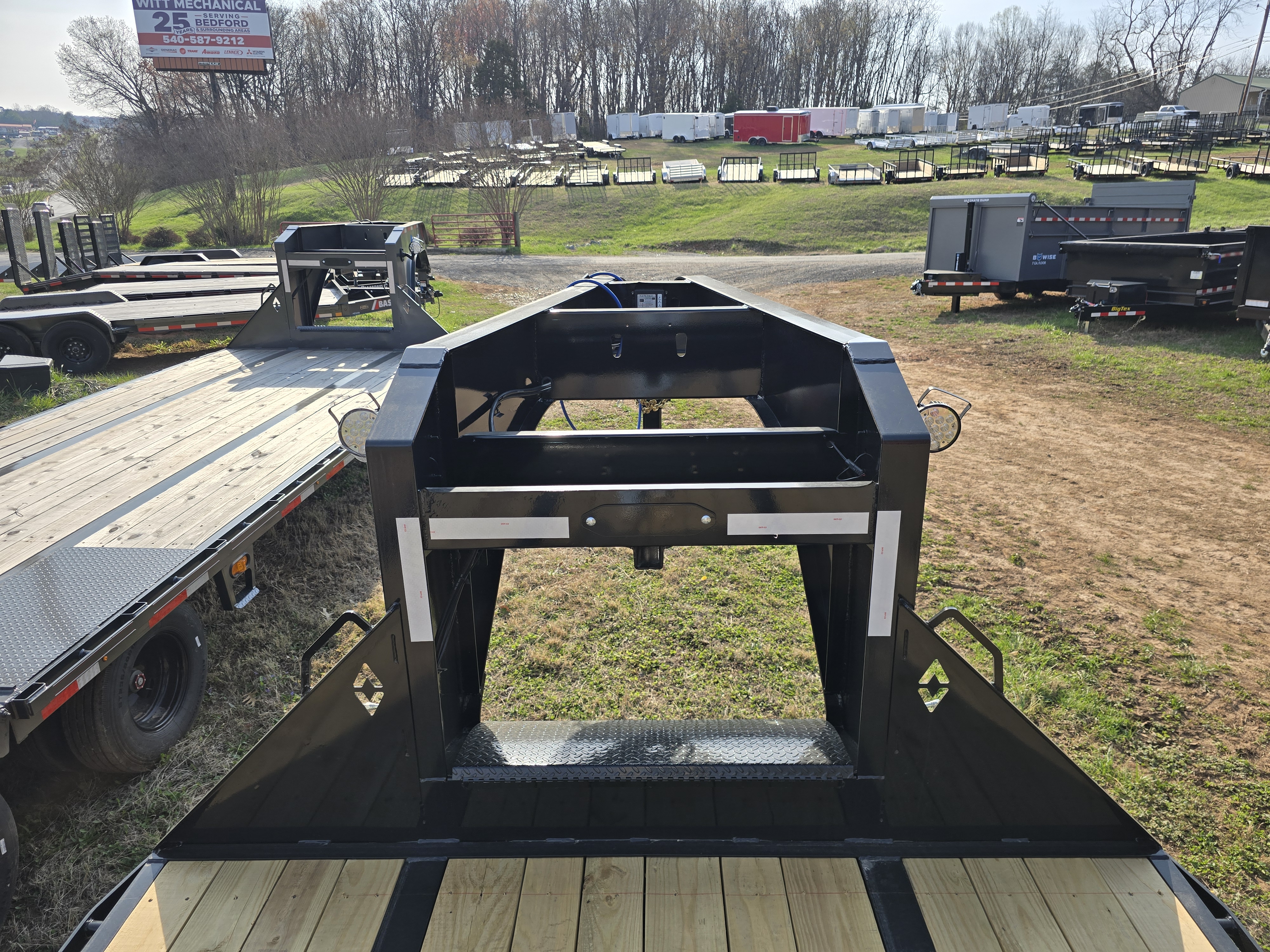

New, Lighter Neck

• The Fleetneck 2.0 neck web is stronger and lighter with the new 10-gauge Grade 80 material resulting in a 65-pound weight reduction.

New Spare Mount Location

• The new spare tire mount location with the easy-to-handle winch that raises and lowers the spare is now located under the trailer deck, guaranteeing it is out of your way until you need it.

Grade 100 Beams

• Grade 100 main frame beams with a 10-gauge thickness have doubled the yield strength of the Fleetneck 1.0.

Chain Tray/Winch Mount

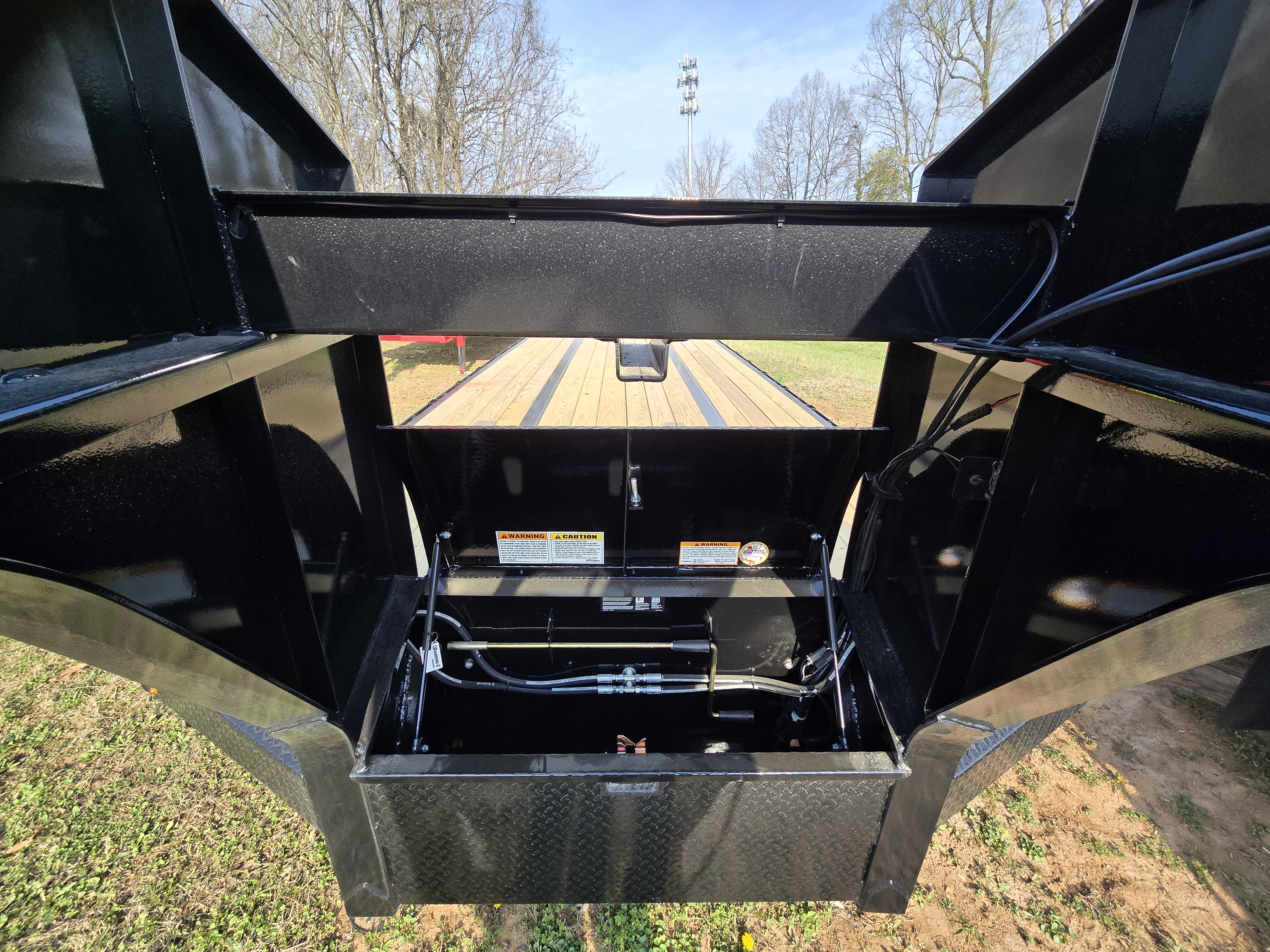

• Storing your chains is easy with the standard chain tray with a winch mount combination and has the option to add a bolt-on winch box

Max Ramps

• 44″ wide ramps for MAX versatility. 50 ksi steel ramp frames x 4 frames per ramp for MAX strength. HD Spring loaded for easy lifting. For safe, stable loading.

12' Hydraulic Dovetail

• 12′ long with easy to climb, 12.5 degree approach angle. Includes Blackwood rubber-infused runners for traction, automatic latch for easy operation, and wireless remote control.

XDR Ramps

• These 24″ x 60″ spring-assisted extreme duty knee ramps are perfect for loading concentrated machines such as backhoes and excavators where space between the ramps is a necessity for knuckle height clearance.

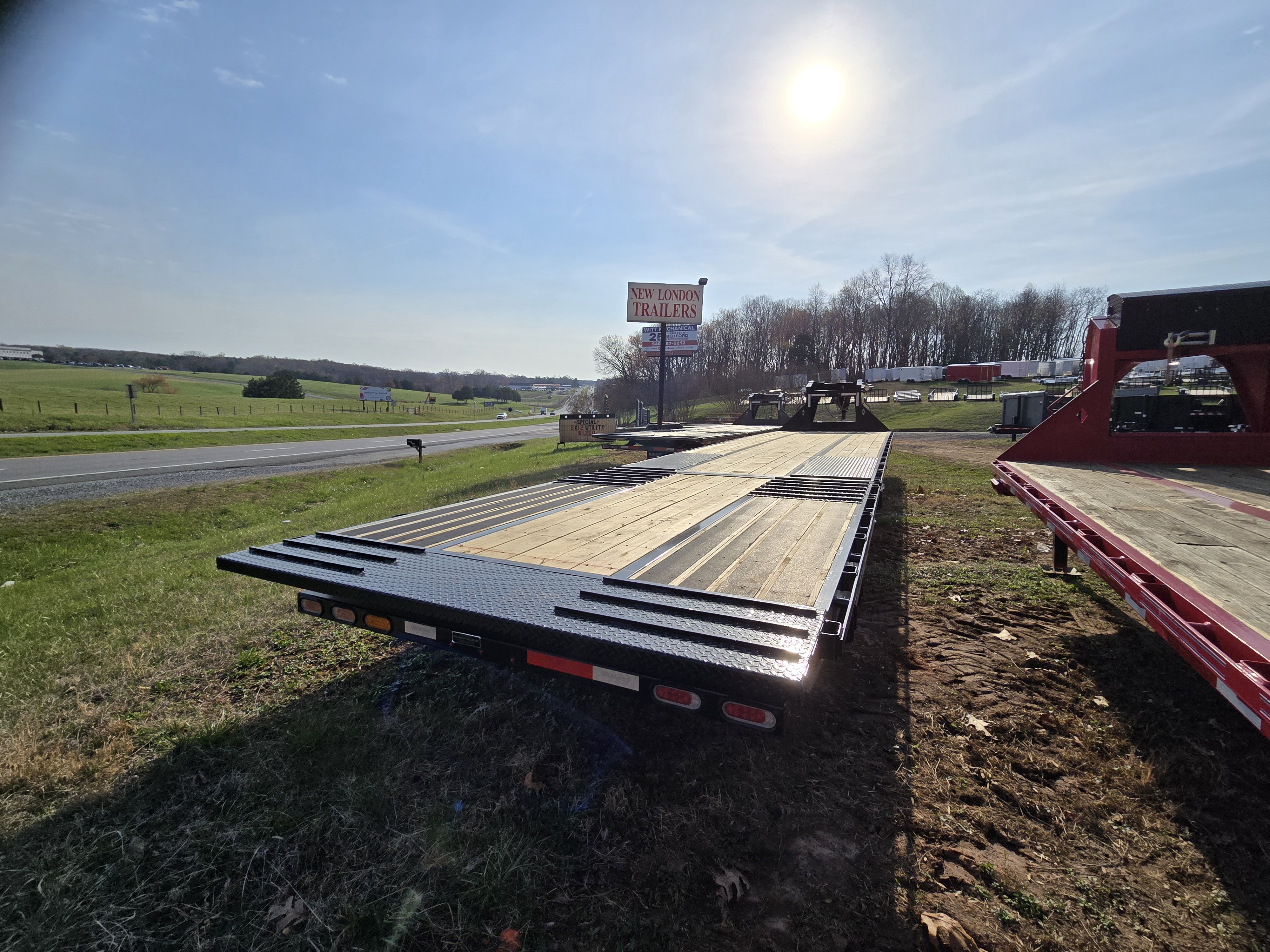

Straight Deck

• The Straight Deck tail configuration includes 3″ channel 96″ Rear Slide-In Ramps that can be conveniently stowed away when not in use. Come with a single piece bumper with light protection.
